Rockchip RK3588#
General Specifications#
Specs
| SoC | Rockchip RK3588 |
|---|---|
| CPU | Octa-core: Quad-core ARM Cortex-A76(up to 2.4GHz) Quad-core ARM Cortex-A55 (up to 1.8GHz) |
| RAM | Dual Channel LPDDR4X/5 |
| GPU | Mali-G610 MP4, compatible with OpenGLES 1.1, 2.0, and 3.2, OpenCL up to 2.2 and Vulkan1.2 |
| VPU | 8K@60fps H.265 and VP9 decoder 8K@30fps H.264 decoder 4K@60fps AV1 decoder 8K@30fps H.264 and H.265 encoder |
| NPU | 6TOPs, supports INT4/INT8/INT16/FP16 |

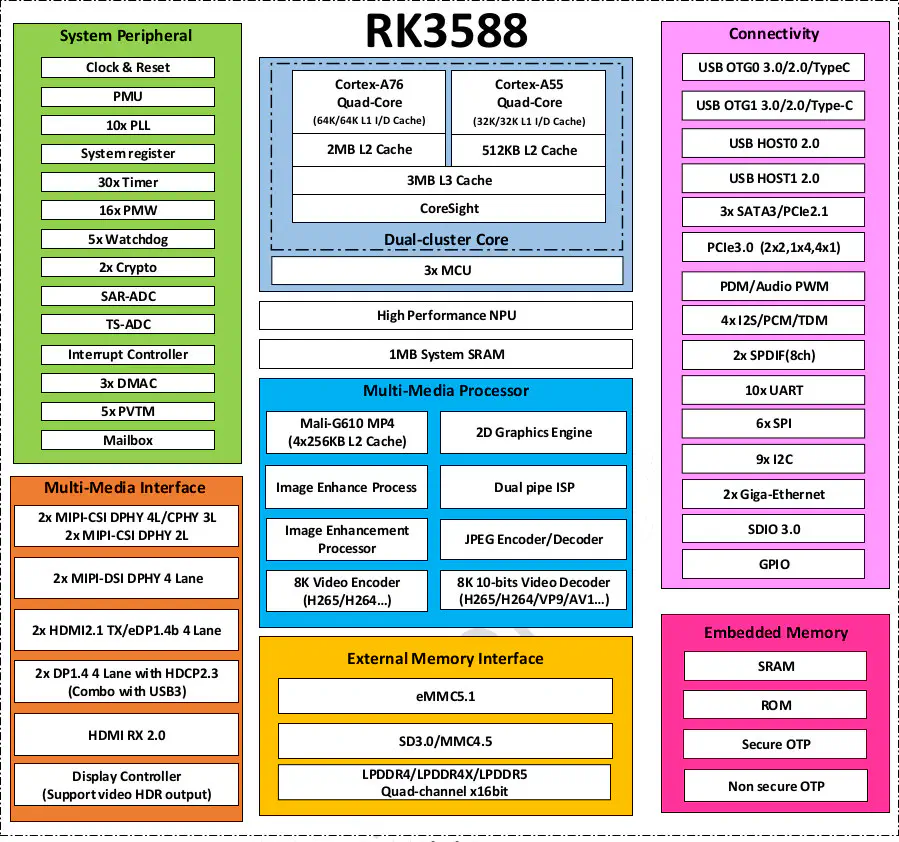

Block Diagram
Linux Support#
Vendor BSP#
- Current Version (rkr5) based on: 6.1
- Legacy: 5.10
(versions do not compare to mainline)
Mainline kernel#
- Fully supported
- Works but not all features are implemented.
See Mainline Status
Variants#
Documentation#
- Technical Reference Manual

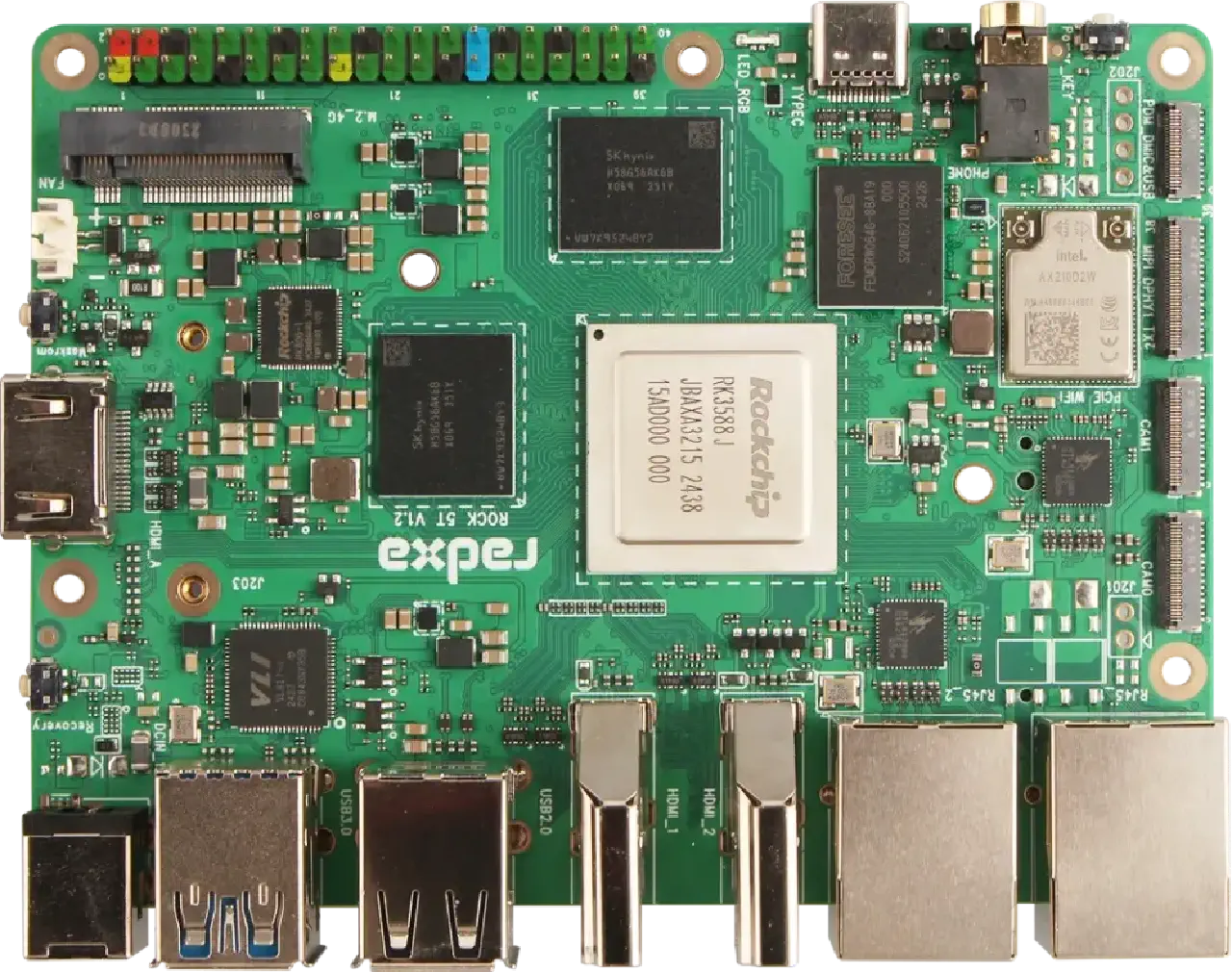

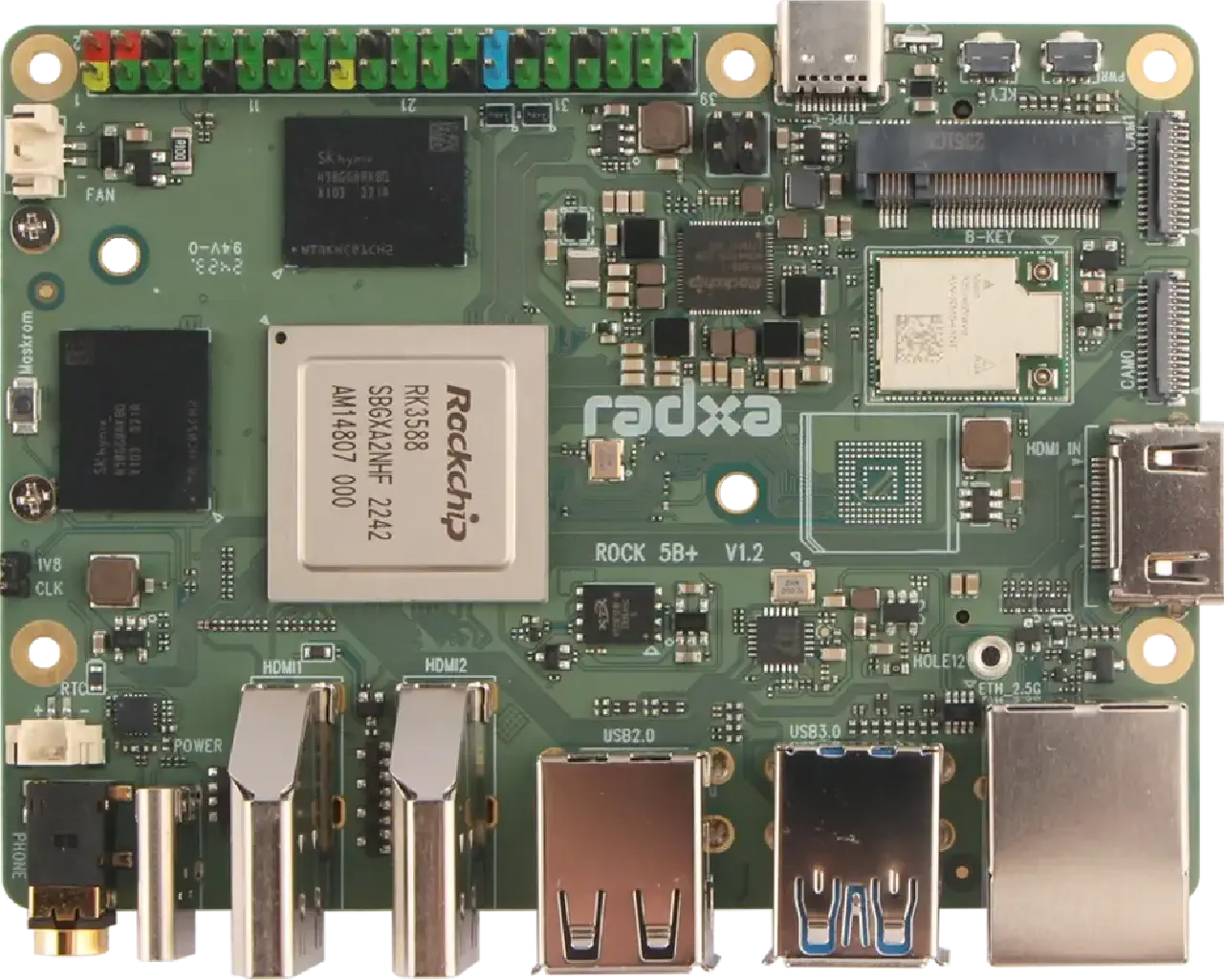

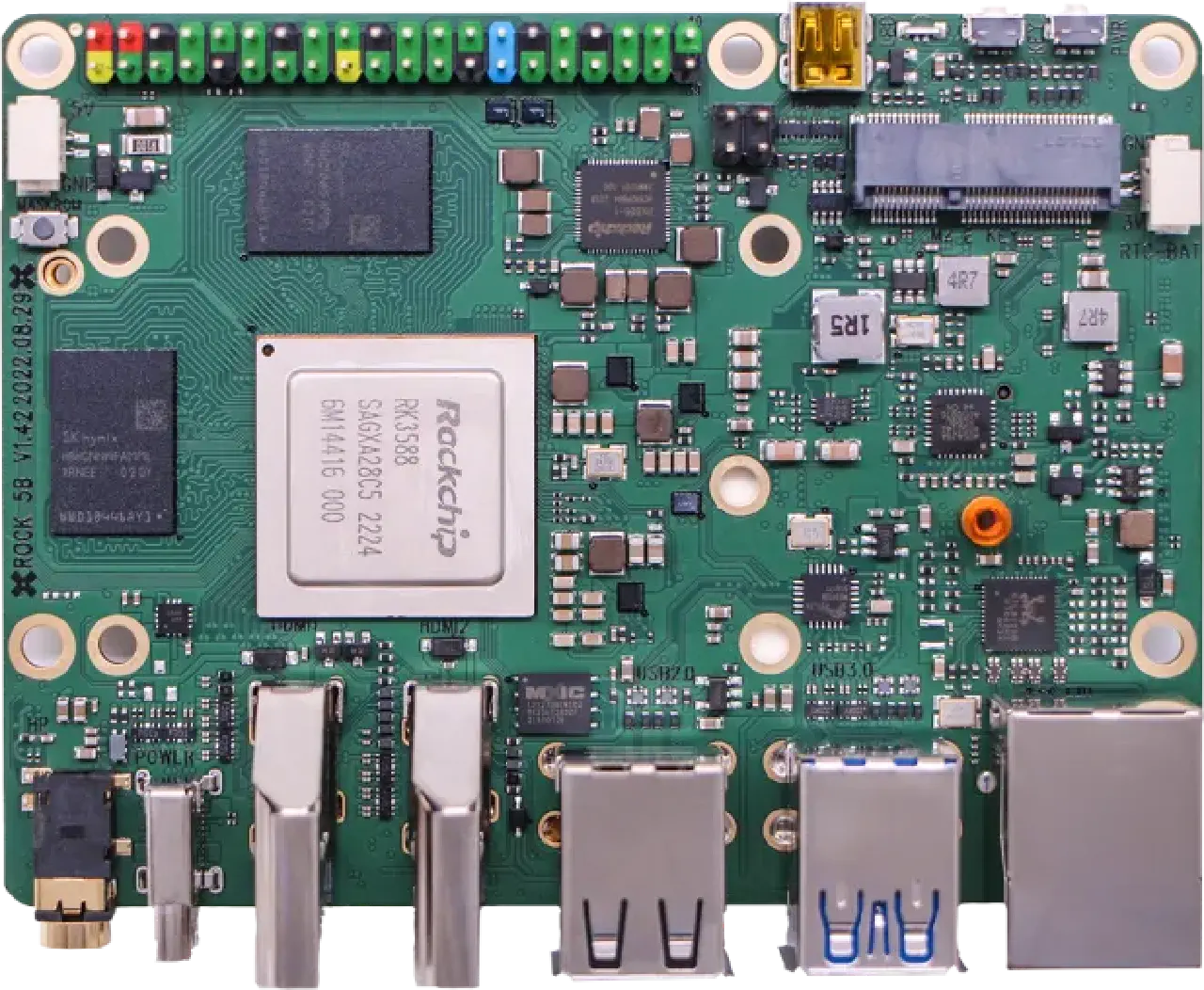

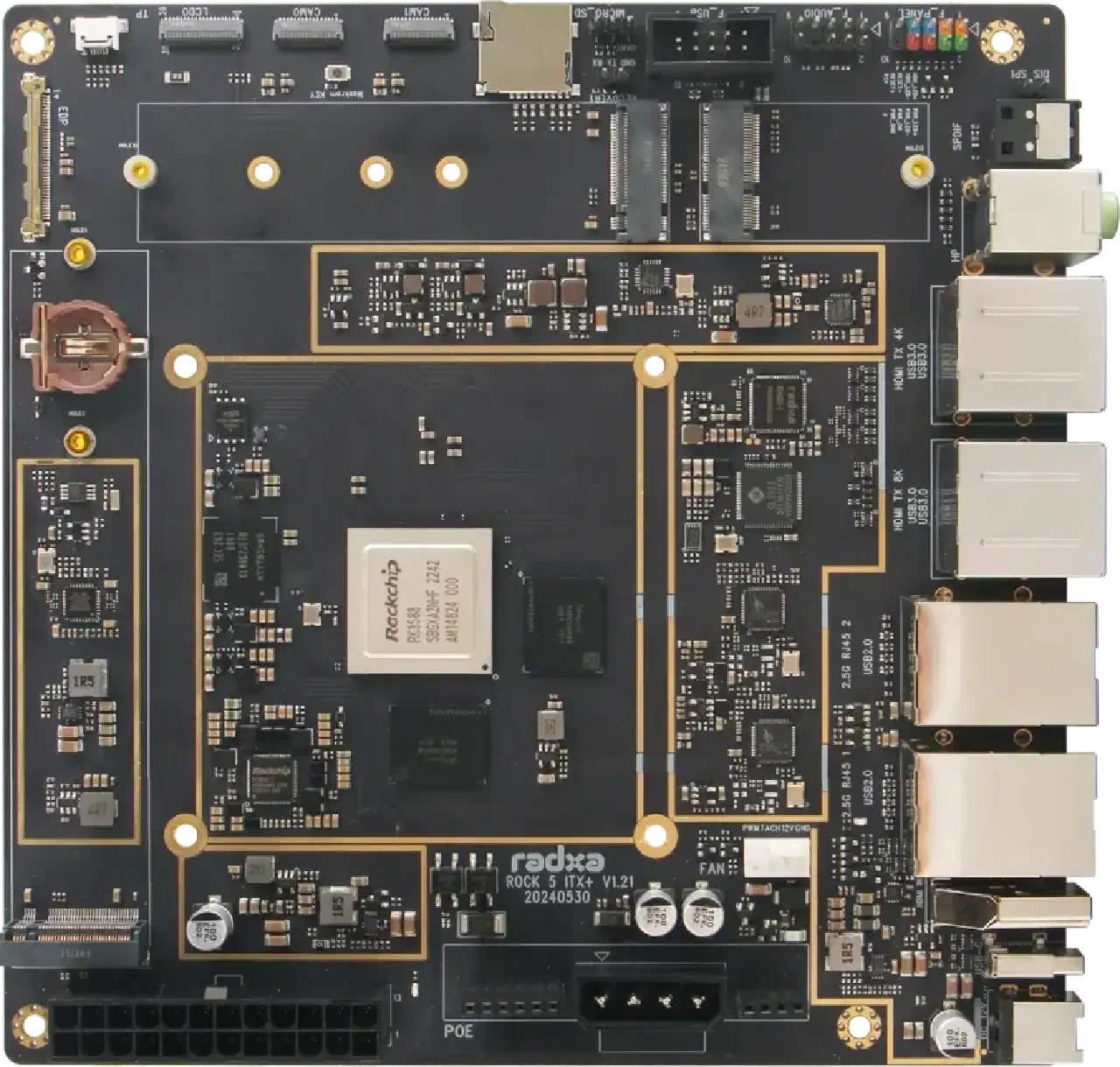

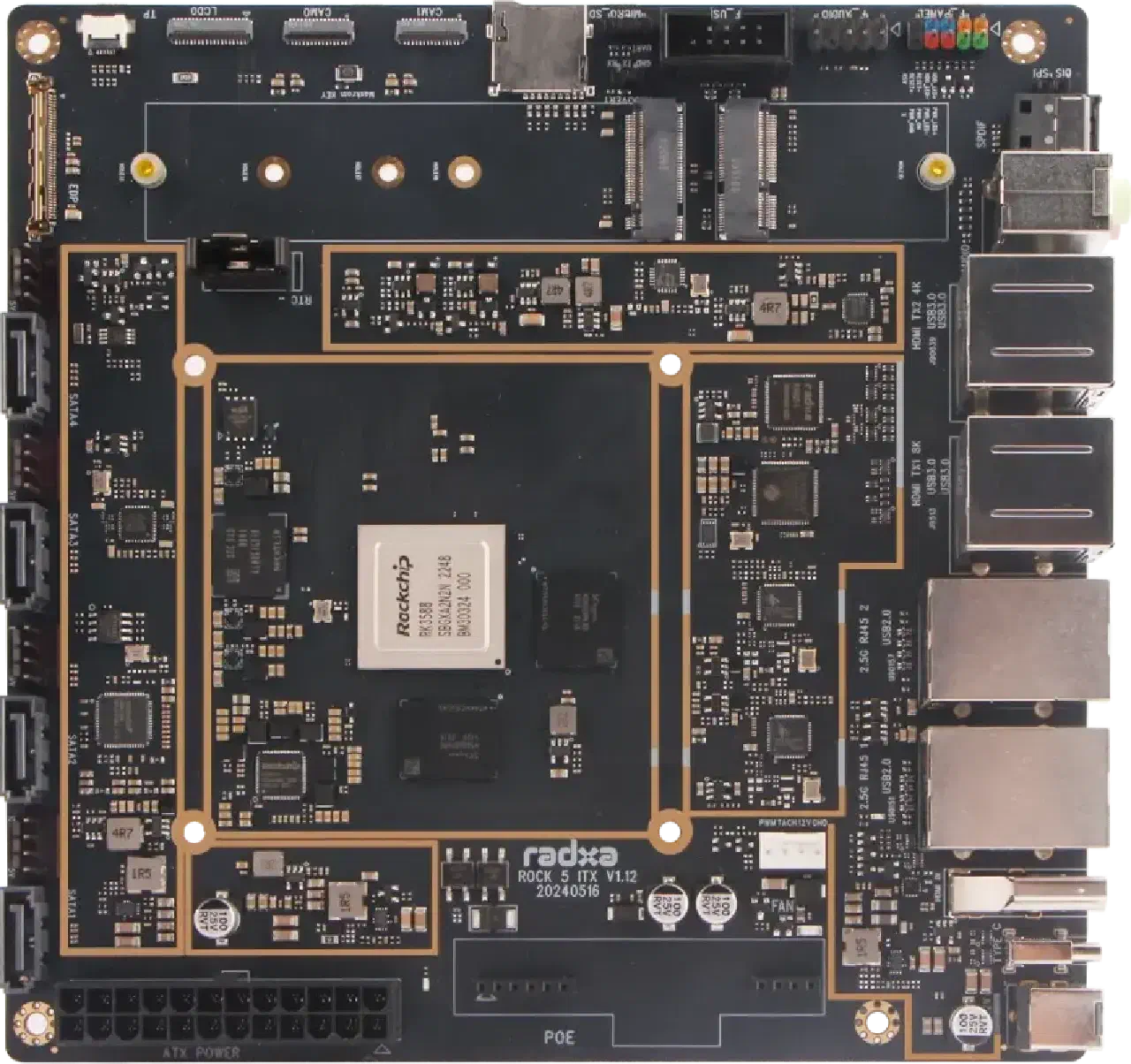

Boards with RK3588#
List of boards:
