QCS6490 / QCM6490#
General Specifications#
Specs
| SoC | QCS6490 / QCM6490 |
|---|---|
| CPU | 1x Kryo Gold plus (A78): high-performance core up to 2.7 GHz 3x Kryo Gold (A78): high-performance cores @ 2.4 GHz 4x Kryo Silver (A55): low-power cores @ 1.9 GHz - Designed with the 6 nm process |
| RAM | Dual-channel non-PoP high-speed memory, LPDDR5/LPDDR4x SDRAM - LPDDR5 SDRAM designed for 3200 MHz clock (2 x 16-bit) - LPDDR4X SDRAM designed for 2133 MHz clock (2 x 16-bit) |
| GPU | Adreno 643 GPU @ 812 MHz |
| VPU | - 4K@60fps decode for H.264/H.265/VP9 - 4K@30fps encode for H.264/H.265 |
| NPU | 6th gen Qualcomm® AI Engine: - Compute Hexagon DSP with dual Hexagon Vector eXtensions (HVX) - Hexagon Co-processor (Hexagon CP) 2.0 - Hexagon Tensor Accelerator |

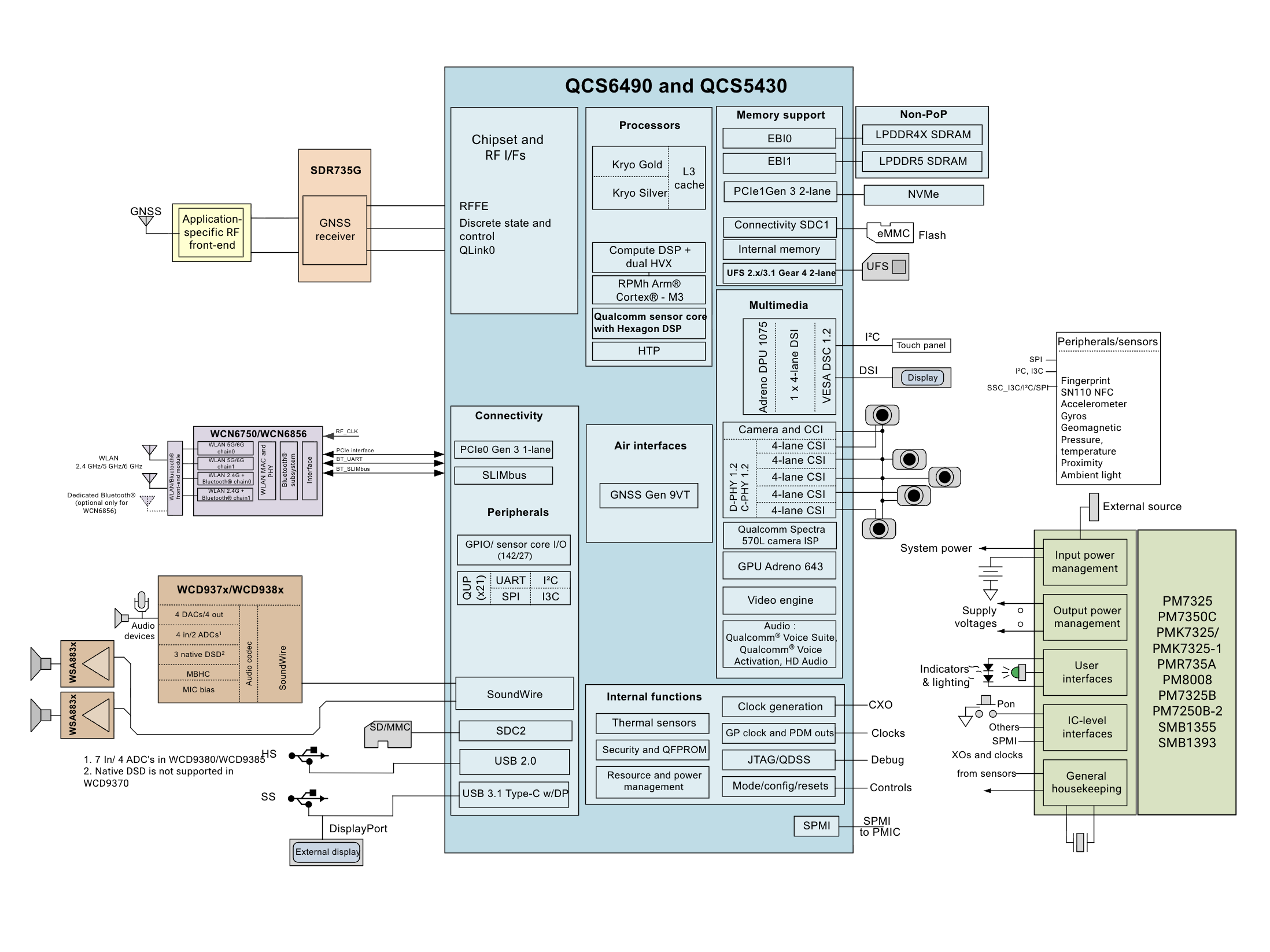

Block Diagram
Also known as:#
- SC7280
- QCS6490
- QCM6490
Resources:#
Linux Support#
Mainline kernel#
- Fully supported. Driver Support Matrix available here
Mesa GPU support#
- Available with Freedreno (Reported as: FD643)
- Turnip Vulkan 1.4 Driver
- Freedreno OpenGL / OpenCL support
See Mailing list
Windows on Arm Support#
- Available but depends on board vendor to provide compatible image + bootloader

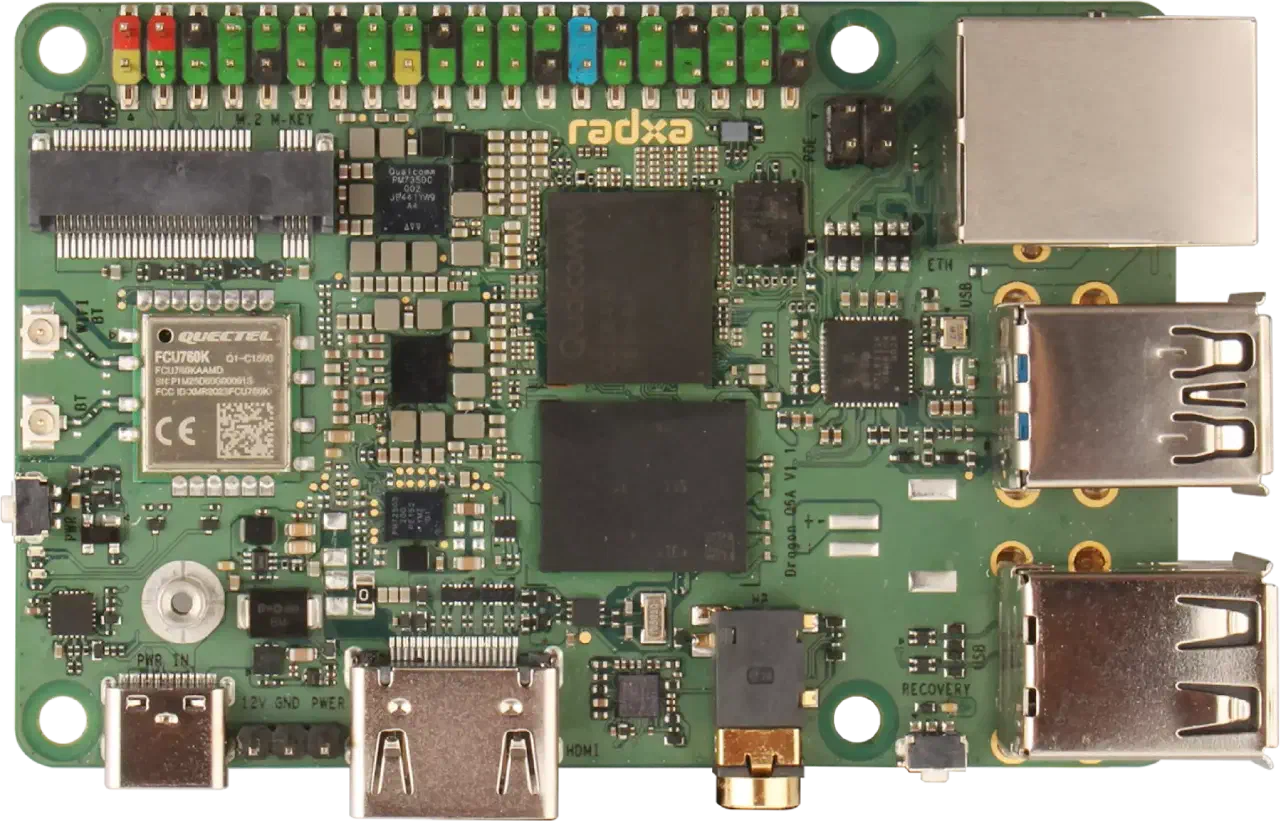

Boards with QCS6490 / QCM6490#
List of boards:
