BananaPi R4 #

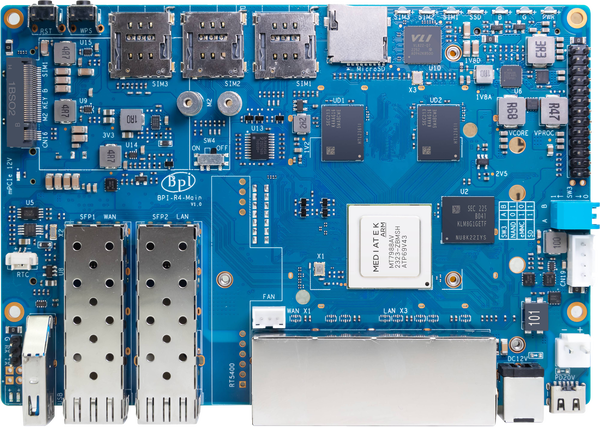

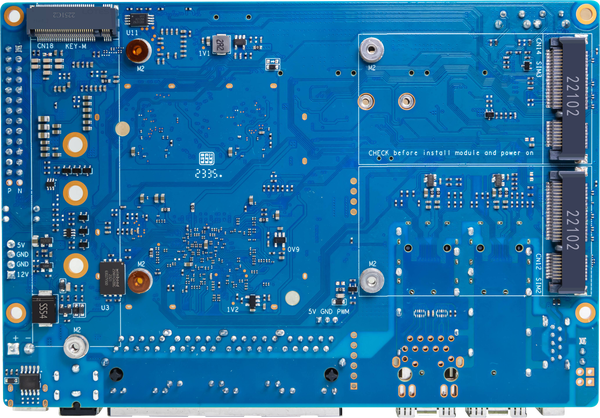

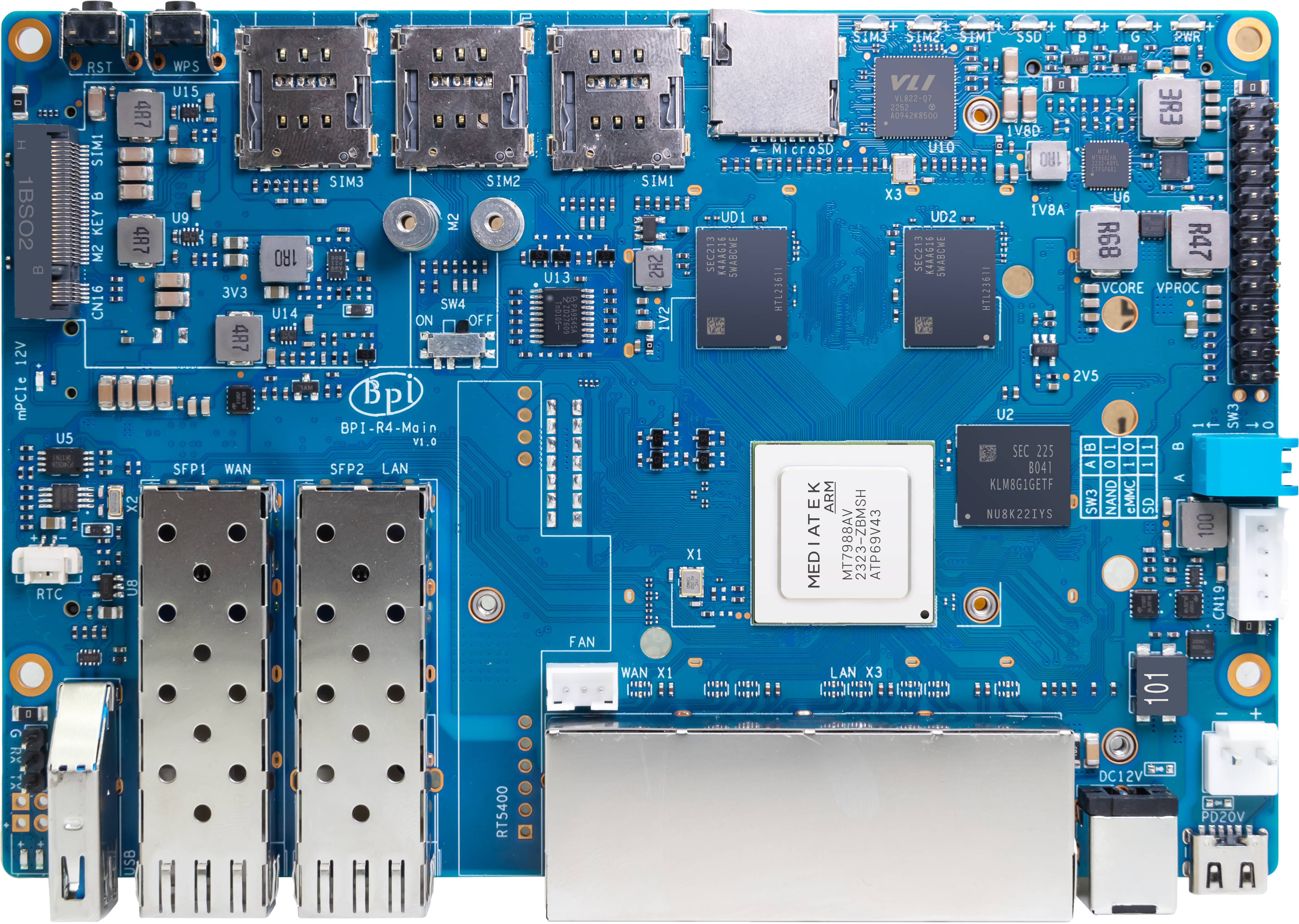

Board Pictures #
Hardware #
Specs
Current Board Revision: 1.1
| SoC | Filogic 880 / MT7988 |
|---|---|
| CPU | Quad-core ARM Cortex-A73 (up to 1.8GHz) |
| RAM | 4GB DDR4 |
| GPU | n/a |
| NPU | HW IPv4 NATP / IPv6 / DS-Lite / 6RD acceleration Hardware QoS acceleration Tunneling Offload Engine for: VLAN / PPTP / L2TP / GRE Ultra-high Speed Networking Crypto Engine for: IPSec,SSL/TLS, DTLS (CAPWAP), SRTP and MACsec |
Interfaces #
| I/O | Description |
|---|---|
| Wireless | 2x miniPCIe slots with PCIe3.0 2-lane interface for Wi-Fi 7 NIC |
| Ethernet | 2x 10Gbe SFP slot 4x GbE network port |
| USB | 1x USB3.2 slot |
| Video | n/a |
| MicroSD | yes |
| Storage | 8GB EMMC 128MB SPI NAND Flash |
| Power | USB Type‑C™ PD Version 2.0 with up to PD 20V 12V/5.2A DC input (5521) |
| GPIO | 26-pin header |
| PCIe | 1x M.2 KEY-M slot with PCIe3.0 1lane interface for NVME SSD 1x M.2 KEY-B slot with USB3.2/PCIe3.0 interface for 5G |
| MIPI | n/a |
| RTC | powered from external battery |
Available OS images #
- OpenWRT Snapshots at OpenWRT Firmware Selector
Documentation / Links #
Benchmarks #
- Geekbench 6.3.0 Preview for Linux AArch64:
Single Core 302, Multi Core 854
