Radxa Orion O6 #

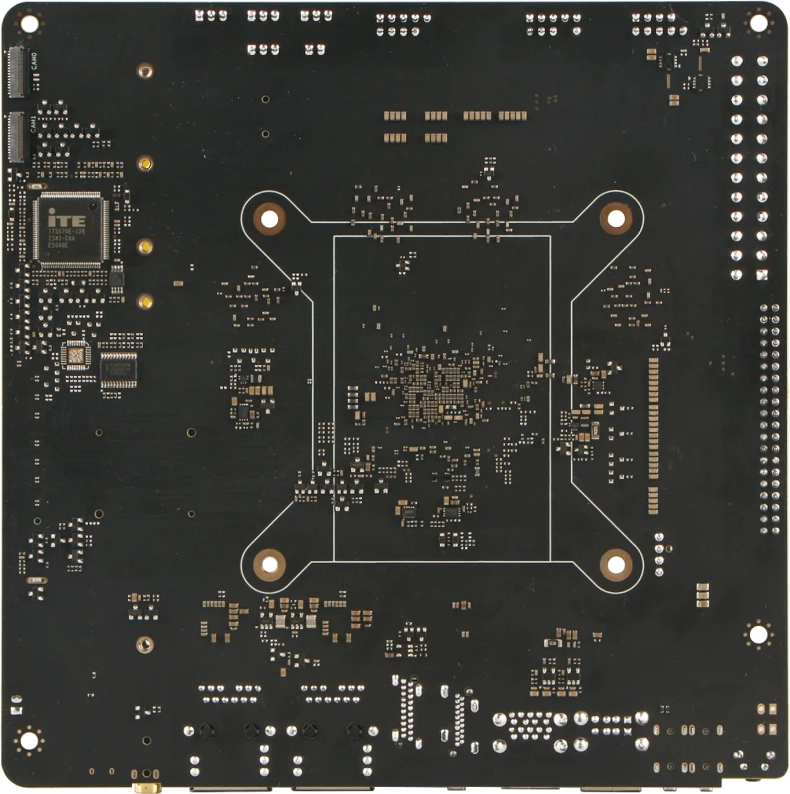

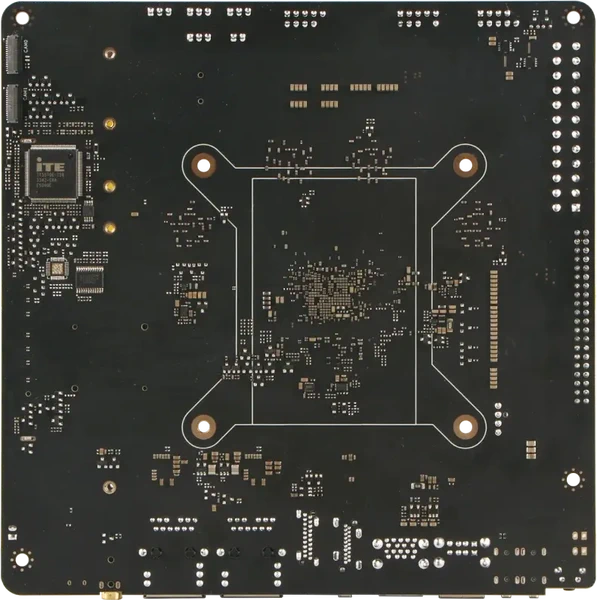

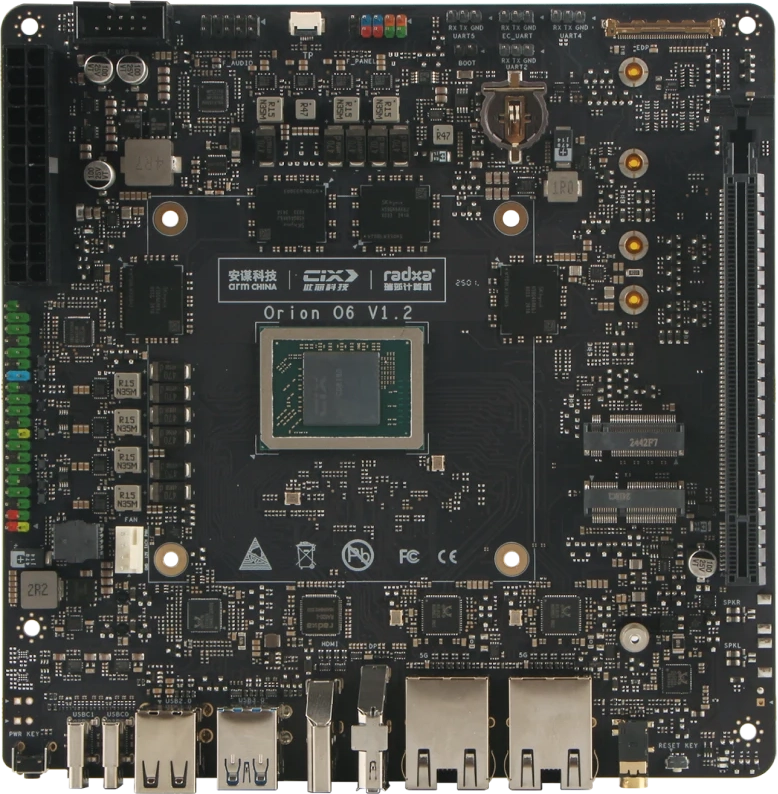

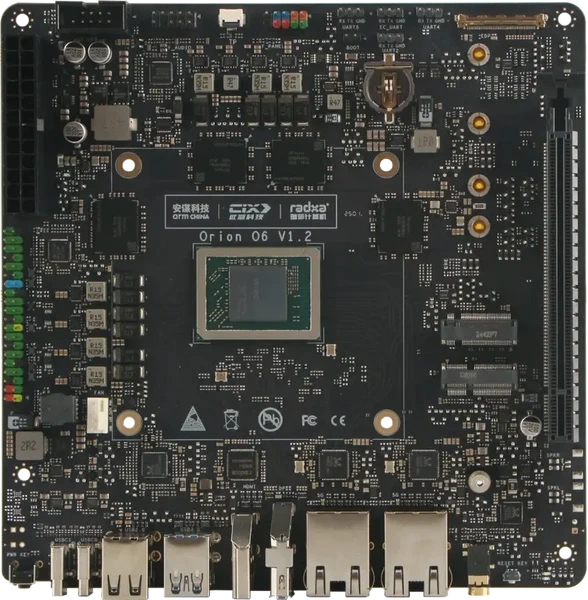

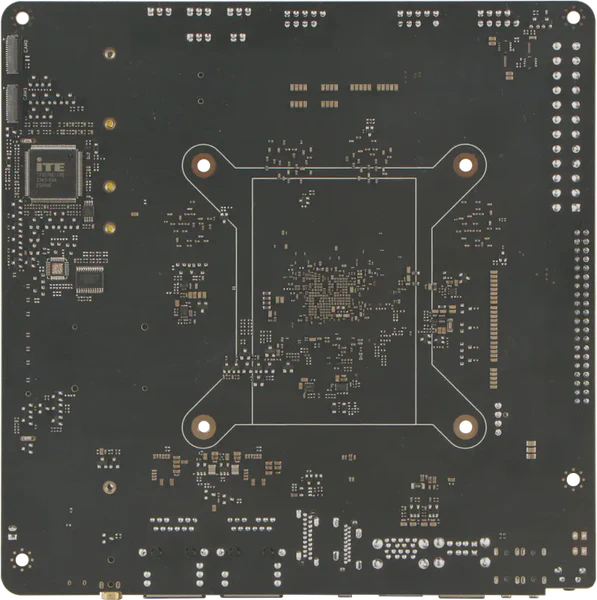

Board Pictures #
Hardware #
Specs
| SoC | CD8180 / P1 |
|---|---|
| CPU | 4x Cortex®-A720 (Big cores) up to 2.8GHz 4x Cortex®‑A720 (Medium cores) up to 2.4GHz 4x Cortex®‑A520 (LITTLE cores) 1.8GHz |
| RAM | LPDDR5 RAM - 128bit memory bus - 5500MT/s transfer speed - Configurations: 4GB / 8GB / 16GB / 32GB / 64GB |
| GPU | Arm® Immortalis™ G720 MC10 - Hardware Ray‑Tracing enabled - Vulkan® 1.3 - OpenGL® ES 3.2 - OpenCL® 3.0 |
| VPU | – 8K@60fps decoder AV1, H.265, H.264, VP9, VP8, H.263, MPEG‑4, MPEG‑2 - 8K@30fps encoder H.265, H.264, VP9, VP8 |
| NPU | Neural Processing Unit (NPU) - Computing Power: 30 TOPs - Precision Support: INT4 / INT8 / INT16 / FP16 / TF32 |
Interfaces #
| I/O | Description |
|---|---|
| Wireless | 1x M.2 E Key Connector with PCIe Gen4 2-lane and USB support for Wi-Fi7 & BT Module |
| Ethernet | 2x 5 Gigabit Ethernet Ports - Speeds: 10 / 100 / 1000 / 2500 / 5000Mbps |
| USB | 2x USB Type-C Ports – Port 1: USB 3.2 Gen 2 (10Gbps) + Power Delivery – Port 2: USB 3.2 Gen 2 (10Gbps) + DP Alt Mode (4K@60Hz) + Power Delivery 2x USB 3.2 HOST Type-A Ports(10Gbps) 2x USB 2.0 HOST Type-A Ports 2x USB 2.0 HOST via Front Panel Header |
| Video | 2x USB Type-C Ports – Port 1: USB 3.2 Gen 2 (10Gbps) + Power Delivery – Port 2: USB 3.2 Gen 2 (10Gbps) + DP Alt Mode (4K@60Hz) + Power Delivery 2x USB 3.2 HOST Type-A Ports(10Gbps) 2x USB 2.0 HOST Type-A Ports 2x USB 2.0 HOST via Front Panel Header |
| MicroSD | n/a |
| Storage | 1x M.2 M Key Connector with PCIe Gen4 4-lane support for M.2 M Key 2280 NVMe SSD |
| Power | 1x 24-Pin ATX Power Supply Connector - Standard Motherboard Power Input - Compatible with ATX Power Supplies 1x USB Type-C Port with Power Delivery |
| GPIO | 40-pin header |
| PCIe | PCIe x16 Physical Slot with PCIe Gen4 8-lane support - Supports graphics cards, AI accelerator and other PCIe devices |
| MIPI | 2x MIPI Camera Interfaces – Configurable as 4-lane or 2-lane MIPI CSI each |
| RTC | powered from CR1220 battery |
Available OS images #
- Radxa Debian image (BSP Kernel, supports Device Tree & ACPI)
- Radxa Android 14 image
- All UEFI based ARM images (with Mainline Kernel 6.6 and above)
Documentation / Links #
Benchmarks #
- GeekBench 6.4.0 Preview for Linux AArch64:
Single Core 1321, Multi Core 6666 - Tkaiser’s SBC-Bench
